- Design
- All-insulated, with internal fuse (T2A)
- Description
- For optimum illumination of a network enclosure.
- Benefits
- Manual or automatic switching via door contact switch is supported
- Optimum illumination of the entire enclosure
- Plug & play quick assembly
- Optionally with clip, screw and magnetic attachment
- Ready to use immediately, thanks to plug-in connection cable
- Attachment with no loss of U in the rack.
- Material
- Light body: Extruded aluminium
- Light cover: Polycarbonate (halogen-free)
- Light ends: PC-ABS (halogen-free)
- Colour
- Enclosure: RAL 7016
- Protection category IP to IEC 60 529
- IP 20
- Supply includes
- IT LED system light
- Mounting kit magnet
- Assembly screws
- Note
- The plug-in connection cables should only be used with the IT LED system light.
- Cascading of multiple IT LED system lights is not possible.
- Dimensions
- Width: 337 mm
- Height: 55 mm
- Depth: 23 mm
- Rated operating voltage
- 100 V - 240 V (AC) , 50 Hz/60 Hz
- Installation options
- Screw-fasten or clip directly onto the VX IT/SE section
- TE 8000, IT enclosure: with magnet mounting kit
- AX, TP: with magnet mounting kit
- AX: with rail for interior installation
- For operation with Europlug to CEE 7/16 and IEC 320 connector
- Operating temperature
- Operation (environment): -20 °C...+55 °C
- Luminous flux
- 600 lm
- Light colour
- 4000 K (neutral white)
- Connection options
- Power supply via connectors
- Door-operated switch
- Light – installation type
- Screw-fastening
- Clip attachment
- Magnetic attachment
- Packs of
- 1 pc(s)
- Weight/pack
- 0.35 kg
- EAN
- 4028177817937
- Customs tariff number
- 94054095
- ETIM 7.0
- EC000321
- ETIM 6.0
- EC000321
- eCl@ss 8.0/8.1
- 27189241
- eCl@ss 6.0/6.1
- 27189241
- Product description

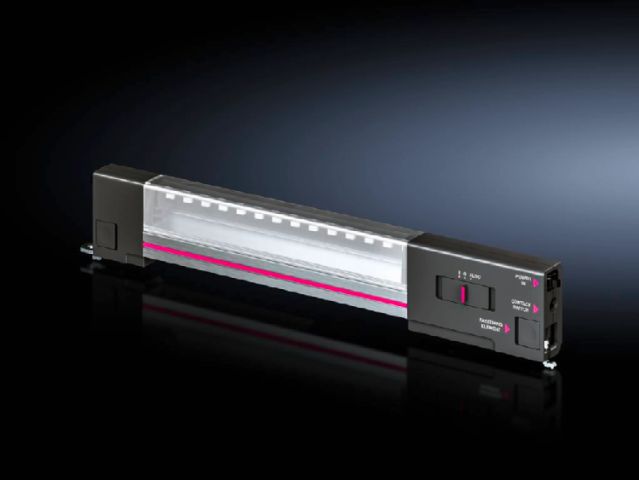

- DK IT-LED system light, 600lm, For frame mounting
