- Material
- Sheet steel
- Aluminium
- Surface finish
- Enclosure frame: Dipcoat-primed
- Interior installation: Dipcoat-primed
- Doors and roof: Dipcoat-primed, powder-coated
- Colour
- Enclosure frame and panels: RAL 7035
- Protection category IP to IEC 60 529
- IP 55 only in conjunction with baying seal or screw-fastened side panels
- Supply includes
- TS 8 enclosure frame with doors and roof plate
- Glazed aluminium door at the front (180°)
- Sheet steel door at the rear, 180° hinges
- Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E
- Roof plate, one-piece, solid
- Base tray with gland plate, multi-piece, solid
- Baying seal and sealing kit for gland plates (supplied loose)
- Connection accessories for potential equalisation with earthing point (supplied loose)
- 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose)
- 50 multi-tooth screws, conductive (supplied loose)
- IPPC pallet
- Note
- Depending on how and where it is sited, the door opening angle may vary for selected applications
- For enclosures with height and depth 2000 x 1200 mm / 2200 x 1000 mm / 2200 x 1200 mm, the matching side panels are optionally available and are supplied fitted to the enclosure
- Basic material
- Sheet steel
- Dimensions
- Width: 800 mm
- Height: 2,200 mm
- Depth: 1,200 mm
- 482.6 mm (19") version
- Without 482.6 mm (19") interior installation
- Construction doors
- Sealed, IP 55
- Free mounting space to the 482.6 mm (19") level, front/rear
-
- Packs of
- 1 pc(s)
- EAN
- 4028177703506
- Customs tariff number
- 94032080
- ETIM 7.0
- EC002499
- ETIM 6.0
- EC002499
- eCl@ss 8.0/8.1
- 27180207
- eCl@ss 6.0/6.1
- 27180207
- Product description

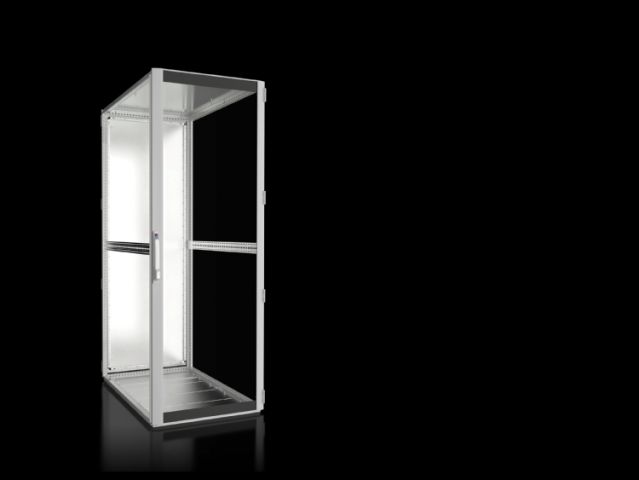

- TS IT, without 482.6 mm (19") interior installation, glazed door, WHD: 800 x 2200 x 1200 mm, 47 U, IP 55
