Commscope 1-1375055-3

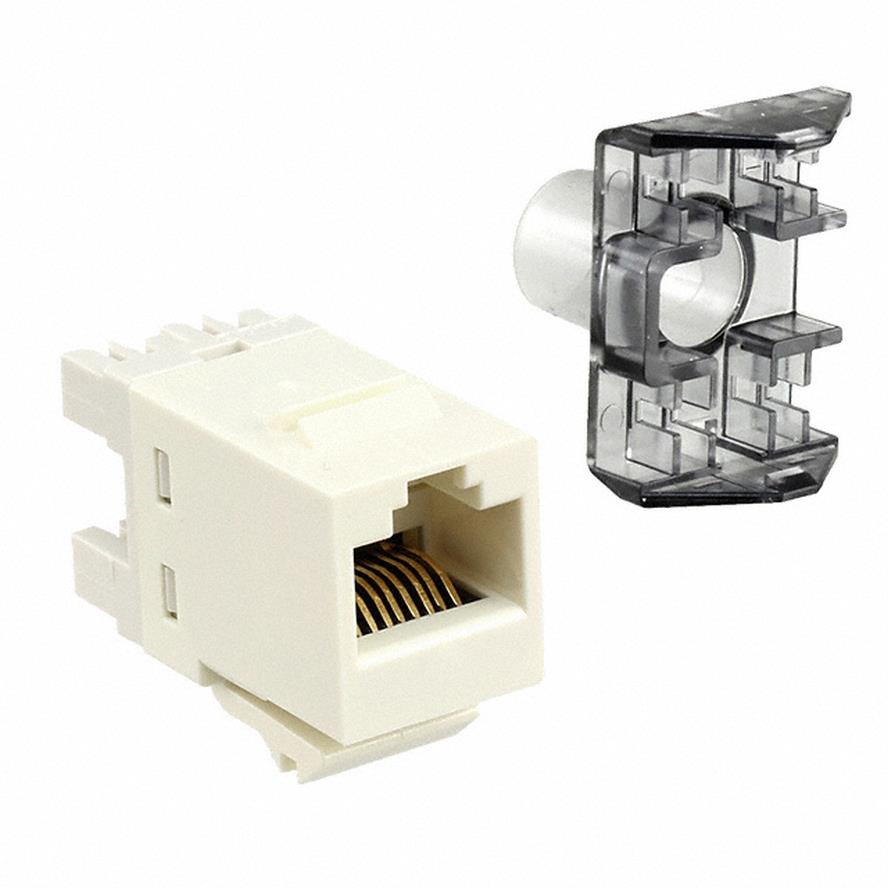

JACK COMMSCOPE AMP CAT 6 SL 110 COLOR BLANCO ALPINO

Código	1-1375055-3
Marca	Commscope
Descripción	JACK COMMSCOPE AMP CAT 6 SL 110 COLOR BLANCO ALPINO
Unidad	PIEZA
Hoja de especificaciones	Especificaciones de 1-1375055-3
Descripciones alternativas	JACK CAT 6 AMP SL 110 RJ45 BLANCO ALPINO JACK CAT 6 COMMSCOPE AMP SLRJ45 BLANCO ALPINO JACK,SL110,RJ45,CAT6,A.WHT

Última Modificación: 22-ago-2019 1:00:21 AM

Product Classification
Portfolio	NETCONNECT®
Product Type	Modular jack
Regional Availability	Asia \| Latin America \| North America
Product Series	SL Series

Body Features
110 Block Material	Polycarbonate
Inverted Jack Face	Yes

Configuration Features
Keyed	No
Number of Positions	8
Wiring Pattern	Universal

Contact Features
Contact Base Material	Beryllium copper
Contact Mating Area Plating Material	Gold
Contact Mating Area Plating Thickness	50.00 µin \| 1.27 µm

Dimensions
Insulated Conductor Outside Diameter	0.057 in \| 1.45 mm
Solid Wire Range	.51 mm² \| .65 mm²
Stranded Wire Range	.14 mm² \| .2 mm²
Wire Range	22 AWG \| 24 AWG \| 26 AWG

Housing Features
Housing Color	White
Housing Material	Polycarbonate

Industry Standards
UL Flammability Rating	UL 94V-0

Mechanical Attachment
Mounting Type	SL Series Faceplate

Other
Comment	With strain relief.

Packaging Features
Packaging Method	Poly Bag
Packaging Quantity	1

Product Type Features
Performance Category	Category 6
Shielded	No
Applies To	Panel
Cable Type	Unshielded Twisted Pair
Connector Style	Jack
Connector Type	Connector Assembly
Dust Cover	Without
Jack Type	RJ45

Termination Features
Termination Method to Wire/Cable	Insulation Displacement Crimp (IDC)
Termination Style	SL Termination Tool

Agency	Classification
RoHS 2011/65/EU	Compliant
